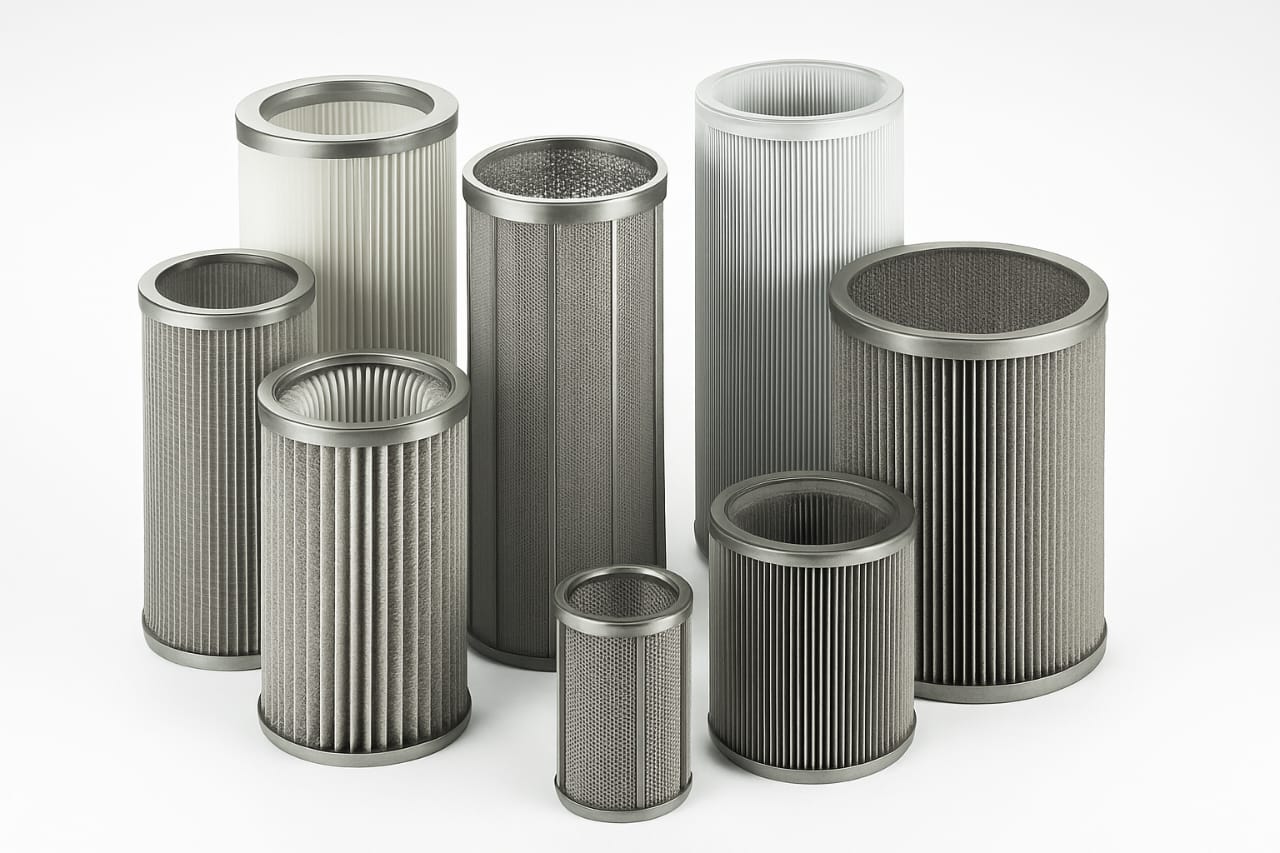

Filter Mesh
Filter mesh is designed for precision separation and filtration in industries such as chemical processing, pharmaceuticals, and food production. These meshes are manufactured in various weaves like Plain, Twill, and Dutch weave, offering accurate particle retention, excellent corrosion resistance, and ease of cleaning. Used in liquid-solid and air filtration systems, they are ideal for both fine and coarse filtration needs.
Specification
Mesh Type |
Aperture |
Wire Dia |
Standard Width |
|---|---|---|---|
Plain Weave |
0.1 – 5.0 mm |
0.08 – 2.00 mm |
1000 - 2000 mm |
Twill Weave |
0.05 – 3.0 mm |
0.10 – 1.50 mm |
1000 - 2000 mm |
Dutch Weave |
0.01 – 0.5 mm |
0.06 – 0.30 mm |
Custom as per request |

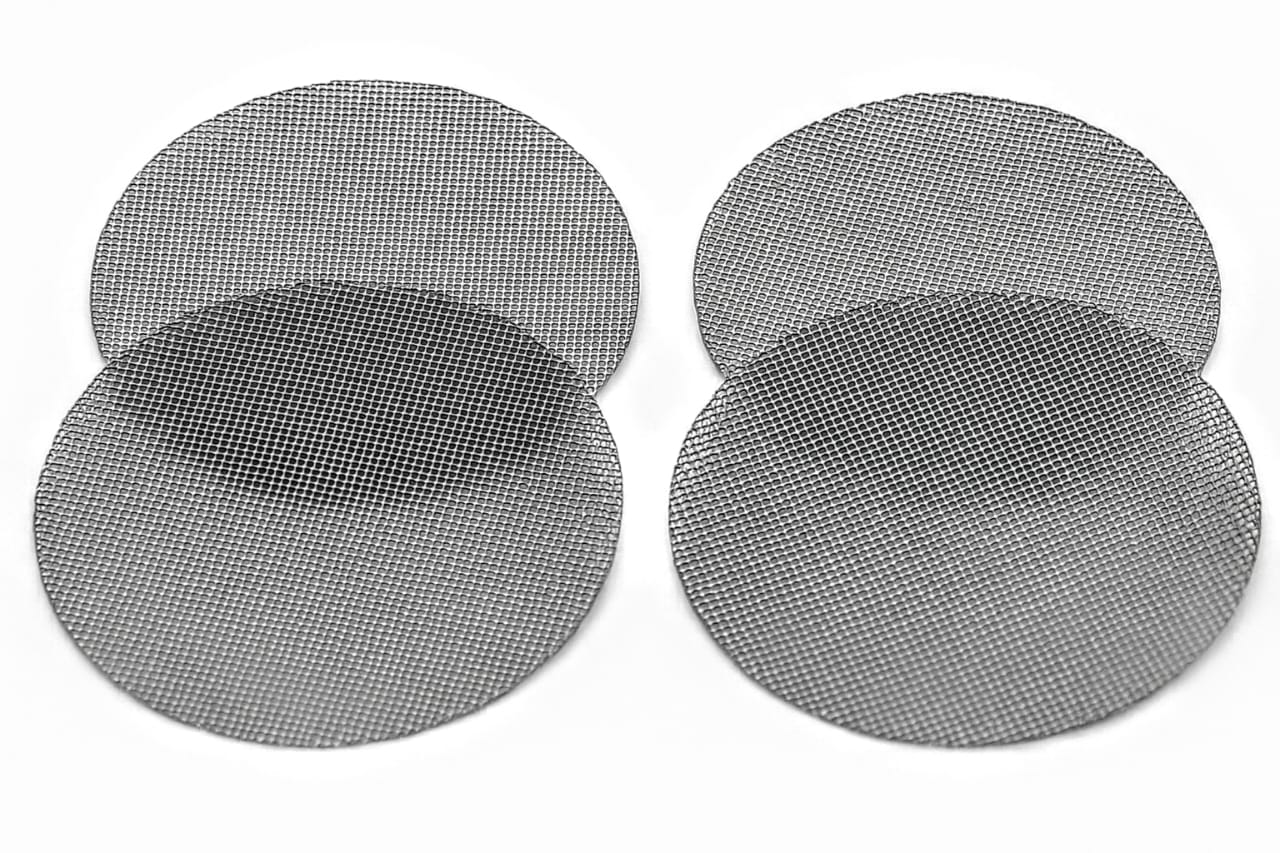

Extruder Mesh
Extruder mesh is a multi-layered filter screen used in plastic and rubber extrusion lines to remove contaminants during processing. It ensures uniform melt flow, protects downstream equipment, and enhances product quality. These meshes are typically layered (single, double, or multi packs) and spot-welded in circular, oval, or custom shapes.
Specification
Mesh Size |
Opening |
Wire Dia |
Standard Width |
|---|---|---|---|
20–60 |
0.7 – 0.2 mm |
0.6 – 0.23 mm |
1000 - 2000 mm |
80–120 |
0.2 – 0.05 mm |
0.15 – 0.08 mm |
Custom as per requirement |
150–200 |
0.1 – 0.03 mm |
0.10 – 0.025 mm |
Custom as per requirement |

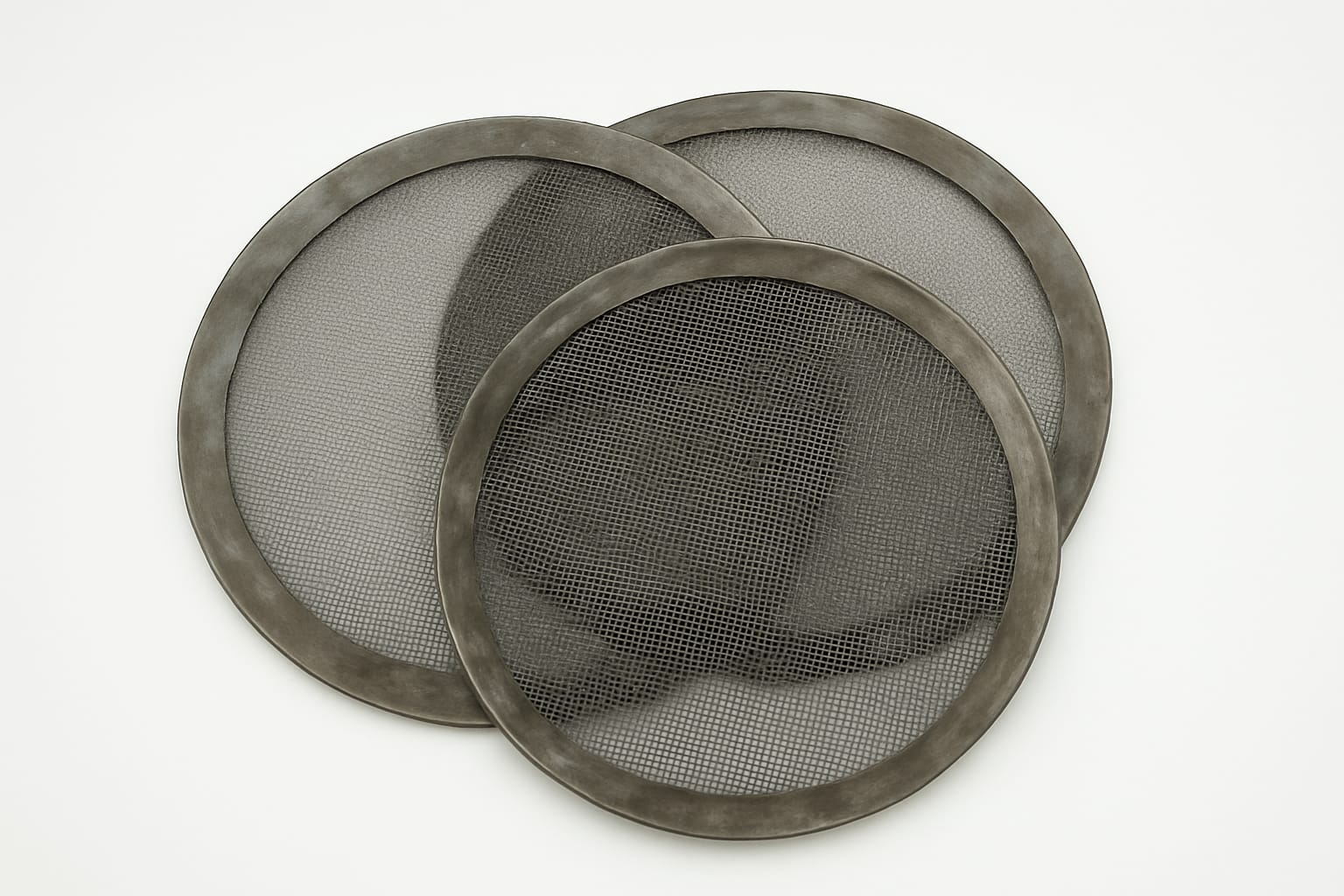

Shifter Mesh
Shifter mesh is a high-precision wire mesh used in vibro shifter machines for grading, sieving, and screening powders and granules in pharmaceutical, food, and chemical industries. Designed for durability and smooth vibration performance, these meshes are available in various mesh counts and are often pre-tensioned for easy installation.
Specification
Mesh Size |
Aperture |
Wire Dia |
Standard Width |
|---|---|---|---|
10–40 |
0.5 – 2.0 mm |
0.5 – 2.0 mm |
1000 - 2000 mm |
60–100 |
0.2 – 0.7 mm |
0.3 – 1.0 mm |
1000 - 2000 mm |
120–200 |
0.03 – 0.2 mm |
0.2 – 0.6 mm |
1000 - 2000 mm |

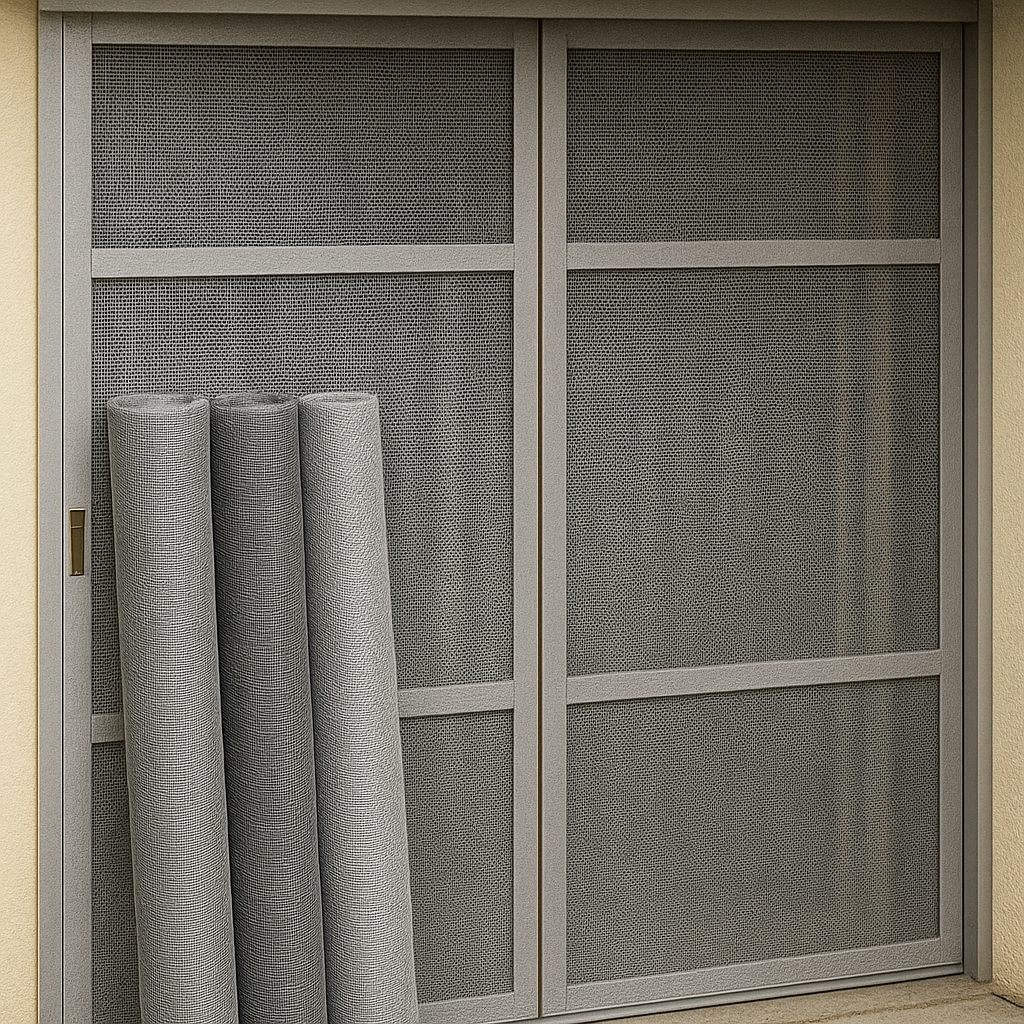

Mosquito Mesh
Mosquito mesh is a lightweight wire mesh commonly used for insect protection in residential, commercial, and industrial spaces. Made from fine wires in stainless steel or aluminum, these meshes offer durability, rust resistance, and good airflow while keeping insects out. Suitable for windows, doors, and ventilated enclosures.
Specification
Mesh Size |
Wire Dia |
Material |
Standard Height |
|---|---|---|---|
14 x 14 |
0.27 - 0.50 mm |
SS 304 |
610 - 1500 mm |
16 x 16 |
0.25 - 0.45 mm |
SS 304 |
610 - 1500 mm |
18 x 16 |
0.25 mm |
SS 304 |
610 - 1500 mm |
1.4 mm [opening] | 0.35 - 0.6 mm | SS 304 | 610 - 1500 mm |
